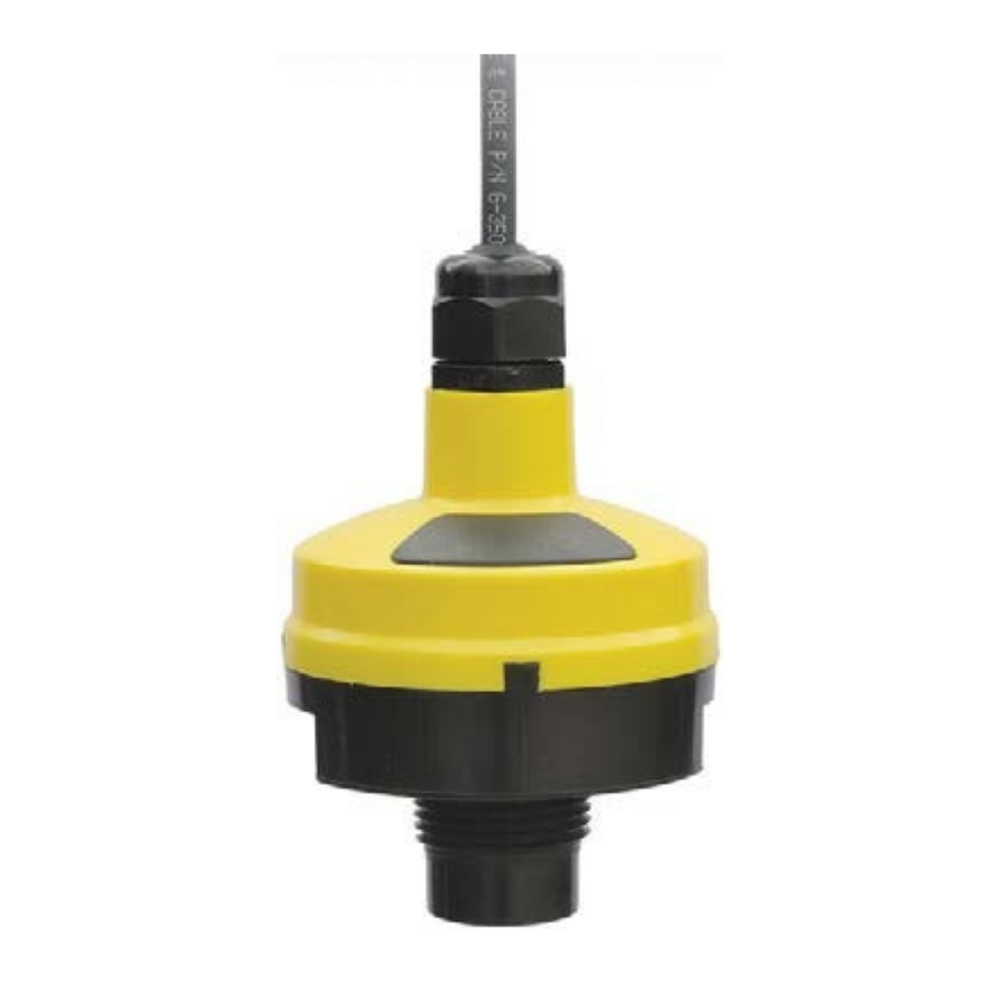

Flowline EchoPod® DL24 Ultrasonic Liquid Level Sensor Transmitter

The Flowline EchoPod® DL24 Ultrasonic Liquid Level Sensor Transmitter is a versatile solution for measuring levels up to 3m (9.8'), with a 4-20 mA signal output and four relays. Each relay can be configured for alarm, automatic fill or empty functions. Easy configuration via WebCal software, this sensor is perfect for small tanks with chemically aggressive, non-foaming, or highly vaporous media. Ideal for chemical feed, skid or machine, IBC or drum and small waste sumps.

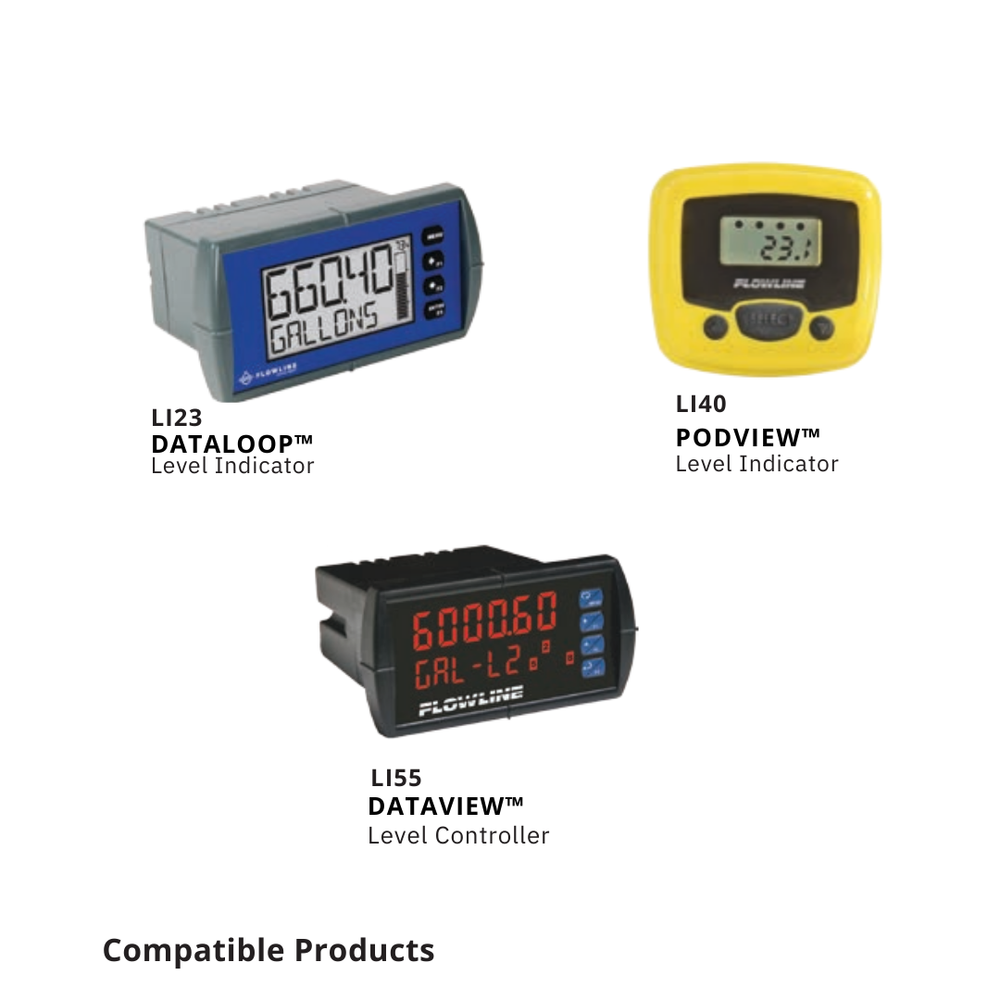

For use with Flowline Level Transmitter EchoPod® DL Series

• Continuous non-contact level measurement up to 1.25m (49.2")

• 4-20 mA output - Four (4) programmable relays rated @ 1A / 60VA
  for switch, pump or valve control and fail-safety
  1 pump or valve with 3 alarms
  2 pumps lead-lag with 2 alarms
  2 pumps duplexing with 2 alarms
  4 independent switch point alarms
• WebCal software and USB adapter configuration
• Narrow 2” beam width and short 2” dead band optimized for small tanks
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation

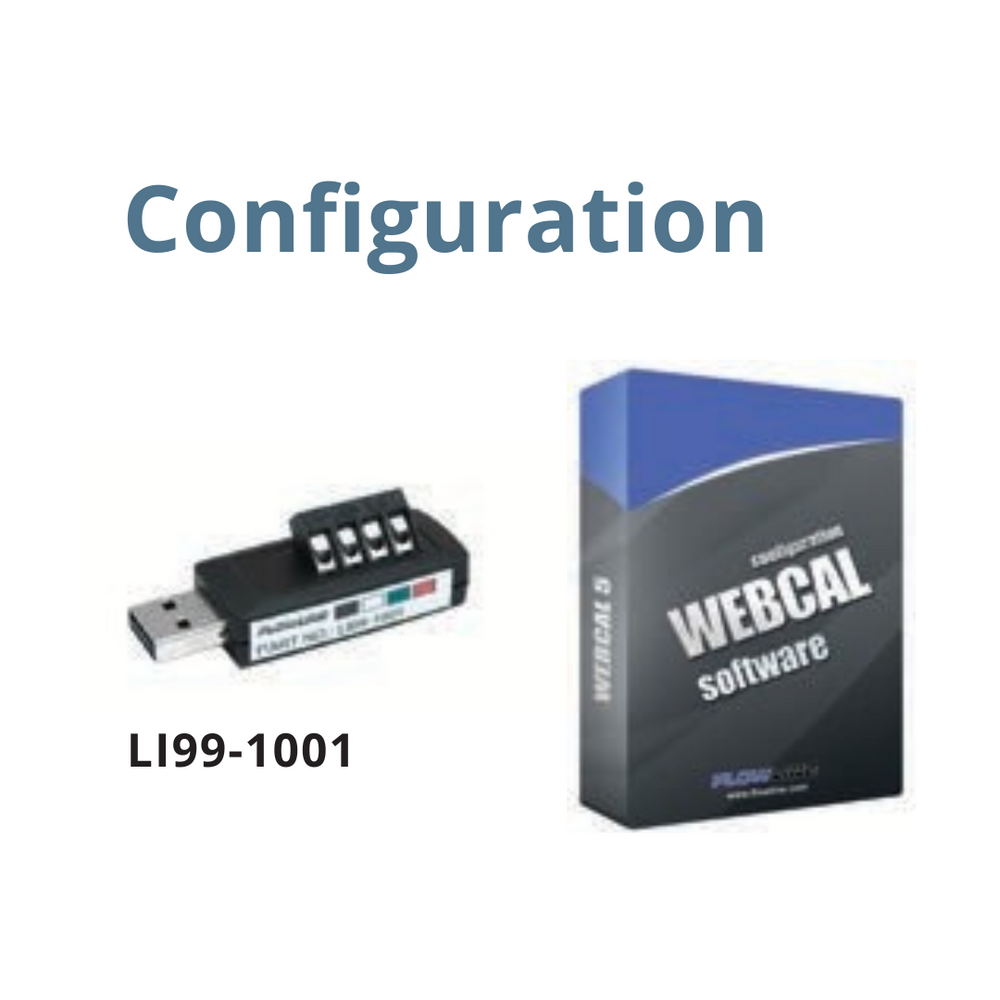

Configuration

The level sensor is configurable via Flowline's free WebCal PC software and Fob USB adapter. The sensors are offered with and without Fobs. Choose your preference when ordering. Fobs are universal and can be used to configure any WebCal compatible product.
