Dwyer  |  SKU: V6EPB-B-S-1-B

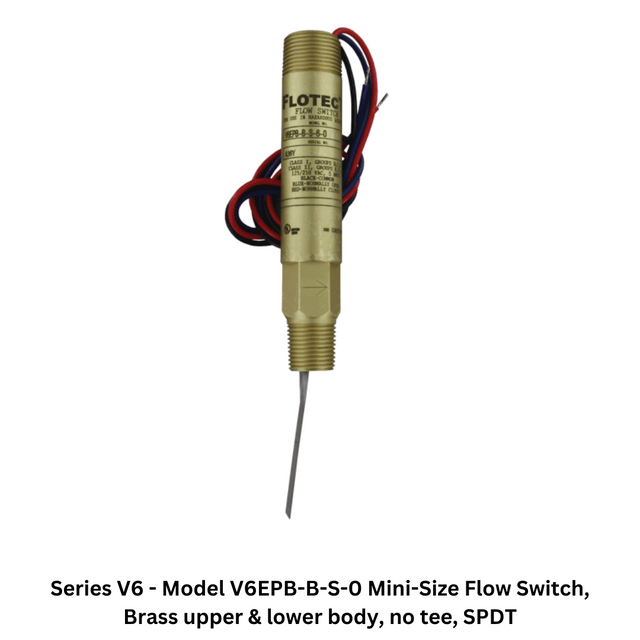

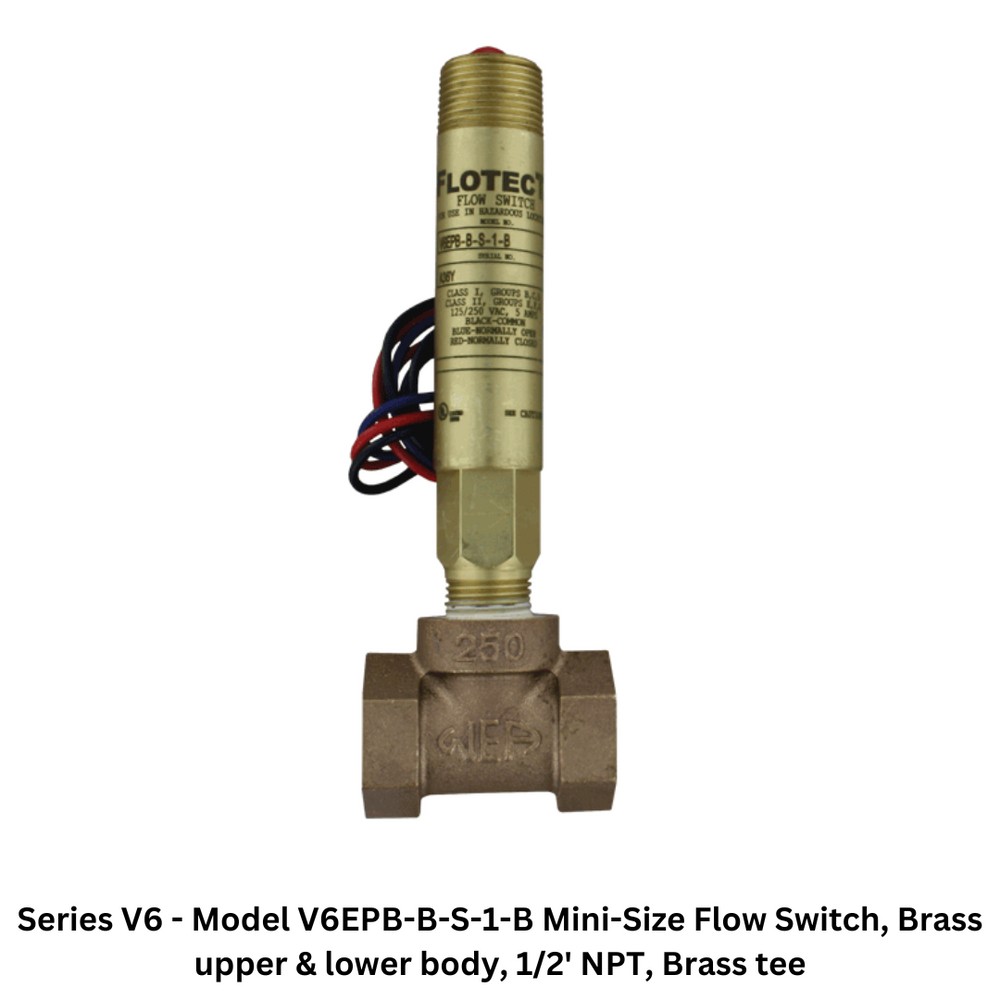

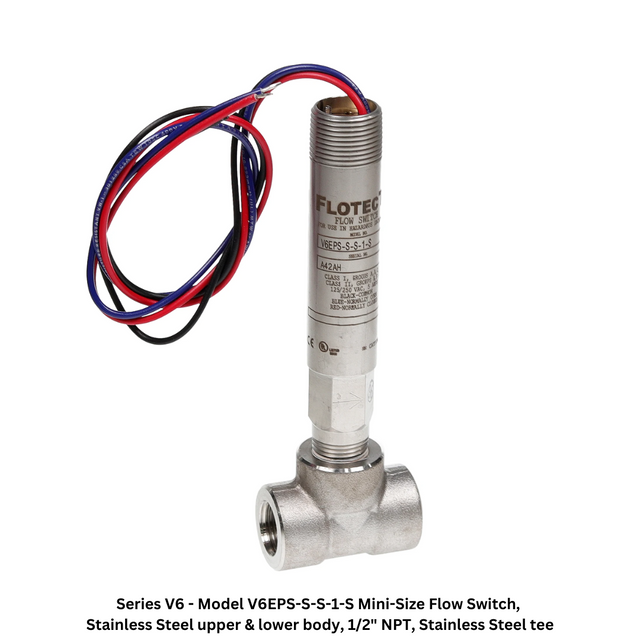

Dwyer Series V6 Flotect® Mini-Size Flow Switch

$706.23
Shipping calculated at checkout.


Description

Designed for monitoring liquid, gas, or air flows, the Dwyer V6 Flotect® Mini-Size Flow Switch is compact and efficient. It has been thoroughly tested in various pipeline installations and processing plants across the globe, and meets NEMA 4 and Explosion-proof standards (listing included in specifications). It can easily fit into pipelines ranging from 1/2" to 2" (12.70 to 50.80 mm), with the added option of using bushings for 1/4" and 3/8" (6.35 and 9.53 mm) pipes.

  • Leakproof body from Barstock; Stainless Steel or Brass;
  • To suit pipe sizes from 15mm up to 50mm N.B;
  • Integral Tee-Piece EXD Explosion-Proof to ATEX, U.L, CSA or FM compliance
  • S.P.D.T. Snap Action Switch; for Gases or Liquids;

Options:

  • Junction boxes - High Temp - Gold Plated Contacts - D.P.D.T
  • Contact us if added extra's required
N.B. All prices exclude GST

Click to read more about our Dwyer Flow Switches
